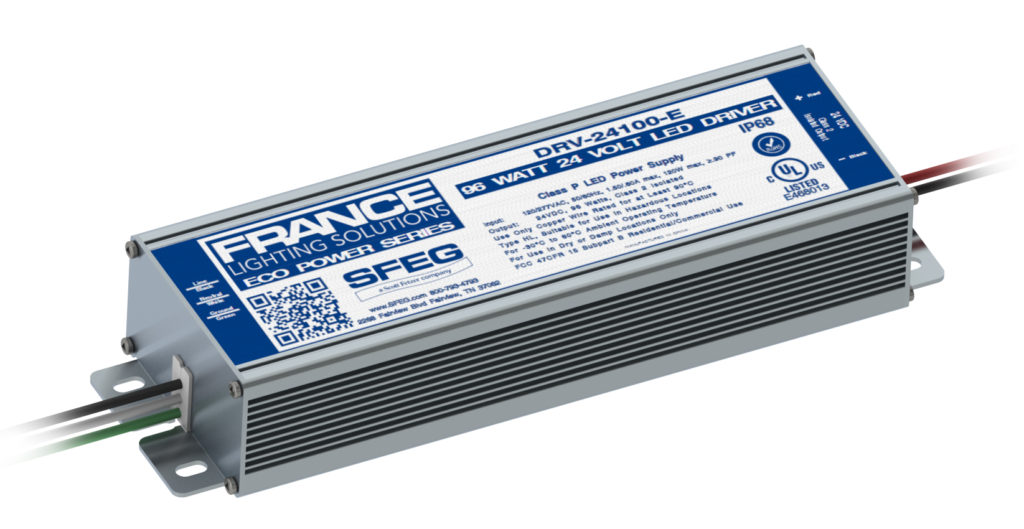

DRV-24100-E

24VDC 100W LED Power Supply

For installation dry or damp locations



Features

  • No power de-rating required: Supports 100% 100W load across entire operating temp range
  • Constant current driver eliminates all resistors on LED modules
  • Constantly bright modules no matter the distance from the driver
  • Class 2 No Minimum Loading requirement
  • IP68, for use in dry or damp locations
  • UL Listed Class P, Class 2
  • FCC 47 CFR 15 Subpart B Residential or Commercial use
  • UL Classified for rapid retrofit neon-to-LED conversion

5-Year Warranty

SPECS

Input Voltage

Input Current @ Max Load

Output

Environment

Listing

Certification

Ambient Operating Temperature

Designation

Size

120/277 VAC, 50/60Hz

1.2/.60 Amp Max

24VDC, 4 Amp, 96 Watt

IP68, for Dry or Damp use

UL Listed Class P

FCC 47CR 15

-30C to 60C

Class 2

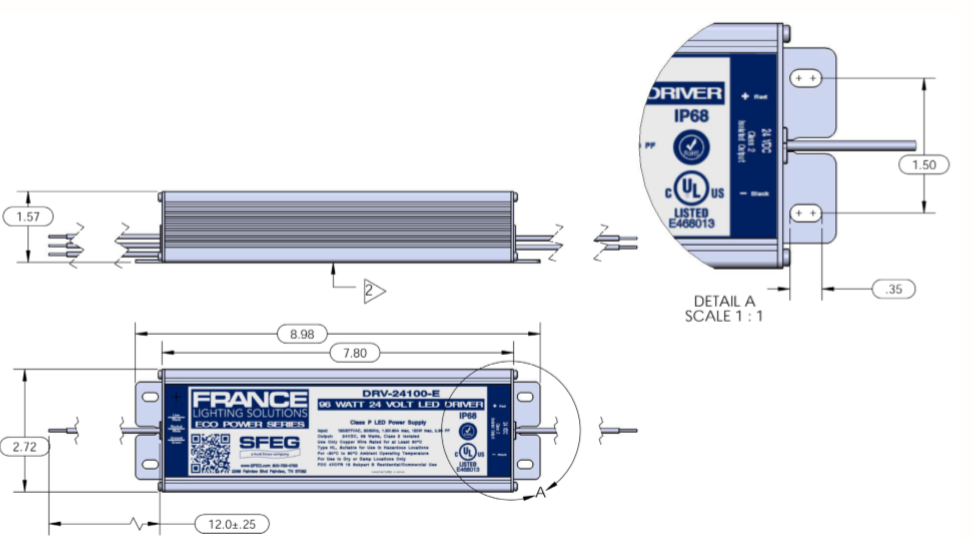

8.98″L x 2.72″W x 1.57″ T

The DRV-24100-E is a member of the Eco Power Series of power supplies. This class 2 LED Power Supply is IP68 rated for dry or damp locations.

Unlike most other power supplies on the market, it supports 100% 100W load across the entire operating temperature range so you never have to worry about de-rating calculations. Plus, it means you can light more LEDs with fewer power supplies and enjoy cost savings.

Its petite size is great for small signs or inside channel letters. Its high electrical efficiency enables low energy costs and cool operation. 85°C maximum case temperature. 10 inch lead length. UL Listed Class P (E468013).
